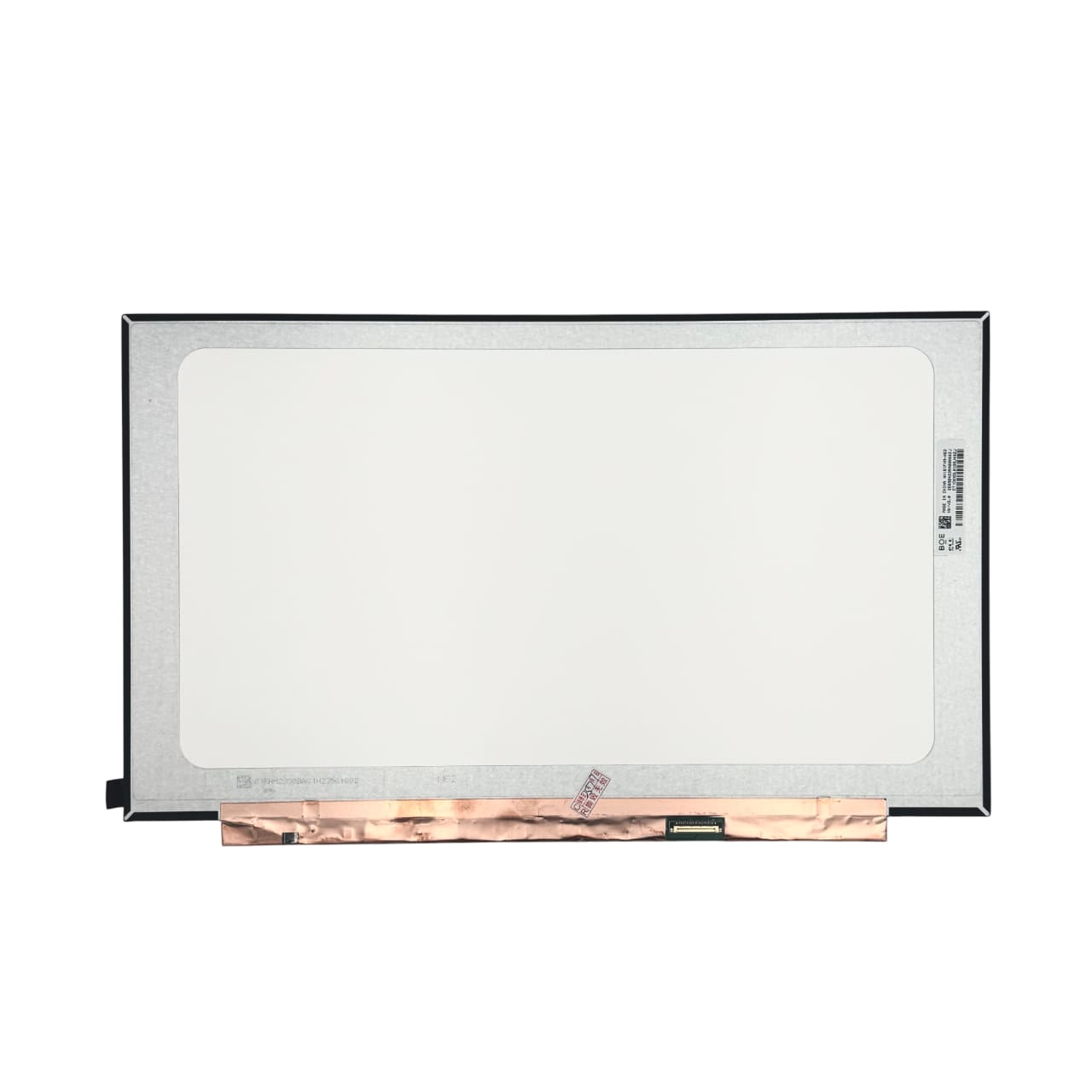

NV161FHM‑N62 is a 16.1-inch Full HD (1920×1080) IPS laptop display panel from BOE, featuring a matte anti-glare surface and smooth 60 Hz refresh rate. With a 30‑pin eDP connector, located at the bottom‑right, it’s a direct replacement for many modern 16″ ultrabooks and gaming laptops.
A robust choice for replacing cracked or faded screens, the NV161FHM‑N62 delivers crisp image clarity, consistent brightness (~300 cd/m²), solid contrast (~1200:1), and a decent 25 ms response time. It’s RoHS compliant and widely adopted across numerous laptop series – making it a versatile, reliable solution for both repair shops and end-users.
Key Specifications:
- Model: NV161FHM‑N62 (HW V3.0 / V8.0)
- Manufacturer: BOE
- Size: 16.1″ diagonal
- Resolution: 1920×1080 (Full HD)
- Display Type: IPS, Matte
- Refresh Rate: 60 Hz
- Brightness: ~300 cd/m²
- Contrast Ratio: ~1200:1
- Response Time: ~25 ms
- Color Gamut: ~100% sRGB

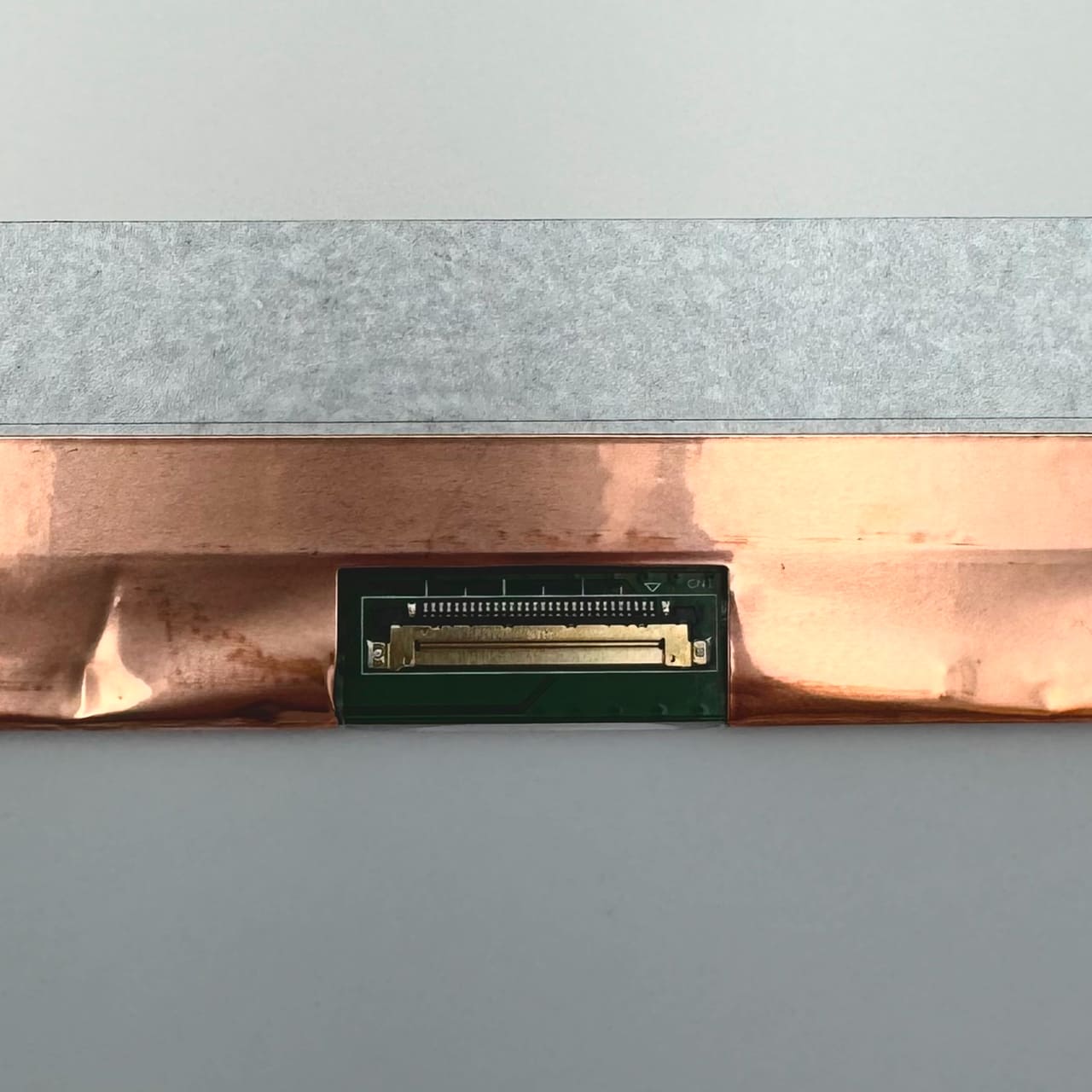

- Connector: 30‑pin eDP, bottom‑right
- Backlight: LED
- RoHS Compliant: Yes
Compatible Part Numbers:
- NV161FHM‑N62, NV161FHM‑N41, NV161FHM‑N61, NV161FHM‑NH0
- N161HCA‑EAC, EA2, EA3, EA4, N161HCA‑EAC Rev.C1
Compatible Laptop Models & Clones:
- Xiaomi RedmiBook 16 (2020)
- OSiO FocusLine F160i / F160a
- Lunnen Ground 16
- Huawei MateBook D 16 HVY‑WAP9
- HP: Victus 16‑E/D0000UR, Pavilion Gaming 16‑A0000UR, Omen 16‑N/K0000UR
- Honor MagicBook Pro (HYL/WFQ9, HLY variants, etc.)
- DIGMA PRO Sprint M (16.1″)
- Acer Swift X SFX16‑51G, Swift 3 SF316‑51
- Plus other OEMs and custom machines using 30‑pin FHD IPS 16.1″ panels
In stock at Fixlaptop in Tbilisi, Georgia. Ready for pickup or shipping nationwide.
