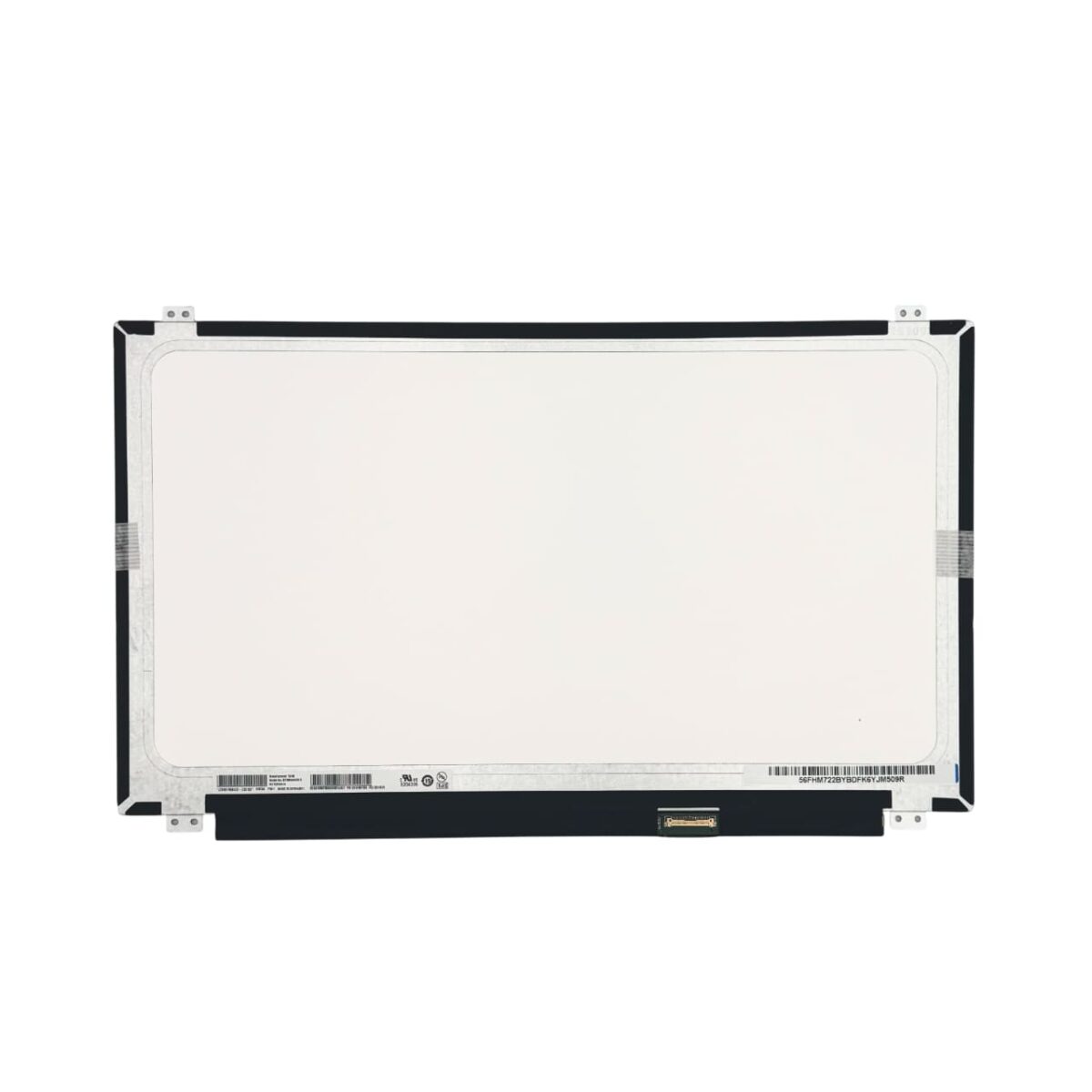

B156HAN04.0 Laptop Screen 15.6″ FHD IPS 30‑Pin

B156HAN04.0 is a high-quality 15.6-inch Full HD (1920×1080) IPS screen manufactured by AU Optronics, designed as a replacement panel for a wide variety of modern laptops. This panel features a matte (anti-glare) surface, standard 60 Hz refresh rate, and a bottom-center 30‑pin eDP connector, making it a highly compatible solution for both business and consumer laptops.

Ideal for screen replacement or upgrade, the B156HAN04.0 delivers wide viewing angles, stable brightness (~300 nits), accurate colors (~72% NTSC), and excellent build quality. It supports LED backlighting and is RoHS compliant.

This model belongs to the AUO B156HAN04 series and is cross-compatible with other similar versions (04.1, 04.4) and many equivalent panels from BOE, LG, and Innolux.

Key Specifications:

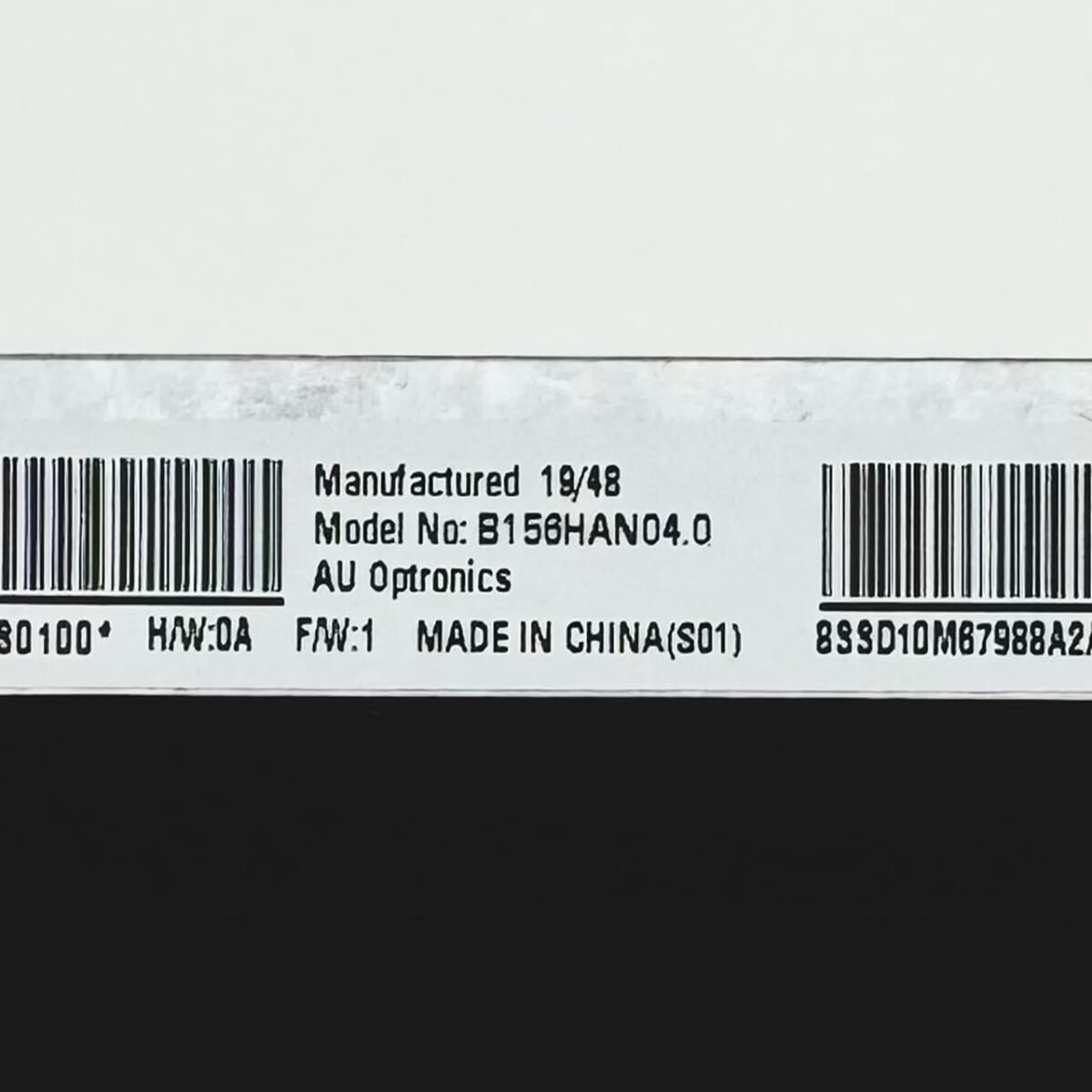

  • Model: B156HAN04.0 (AU Optronics)
  • Panel Type: IPS, Matte (Anti-Glare)
  • Size: 15.6 inches
  • Resolution: 1920×1080 (Full HD)
  • Refresh Rate: 60 Hz

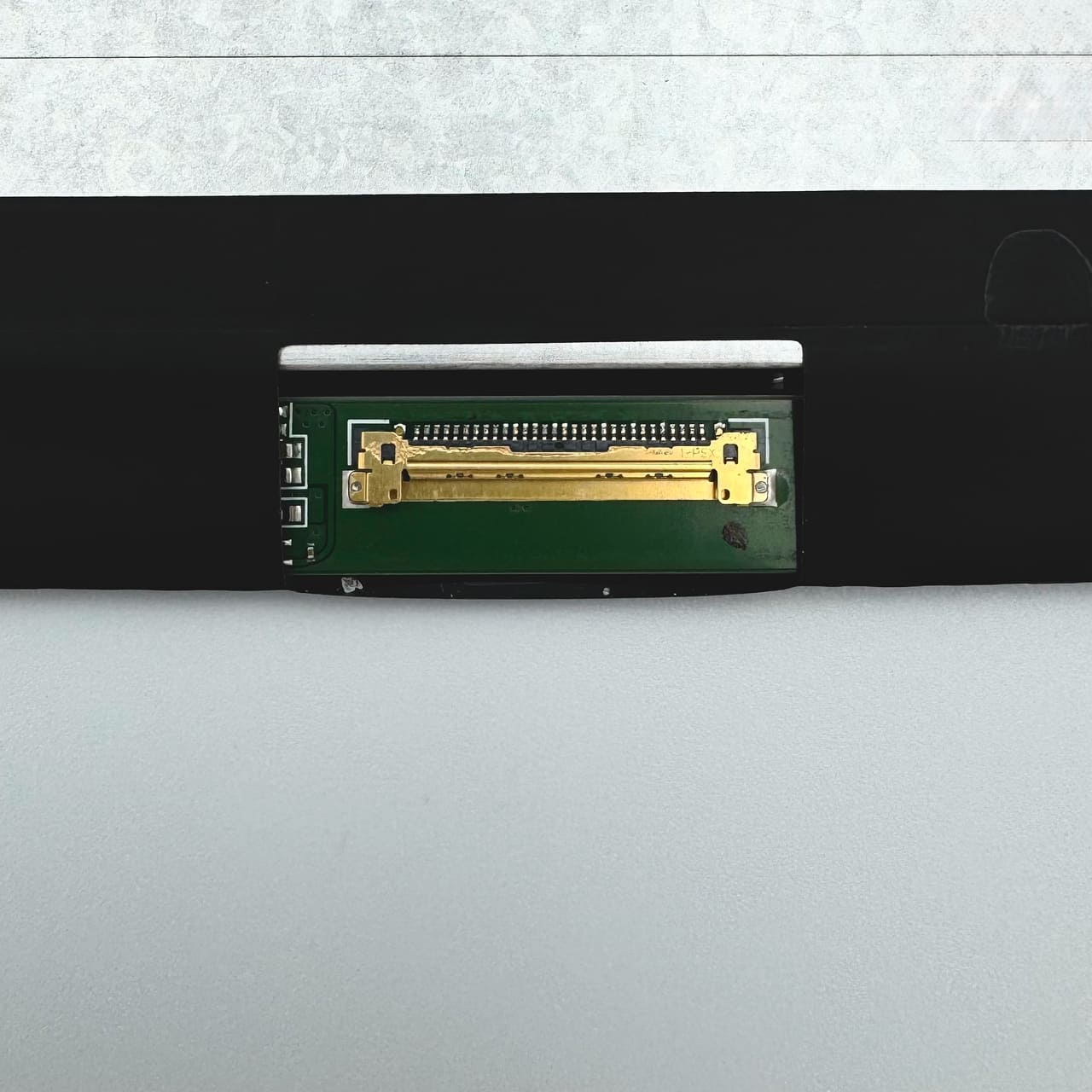

  • Connector: 30‑pin eDP (bottom-center)
  • Brightness: ~300 cd/m²
  • Contrast Ratio: ~800:1
  • Response Time: ~25 ms
  • Color Gamut: 72% NTSC
  • Backlight: WLED
  • Compliance: RoHS, AUO eco compliance

Compatible Part Numbers:

  • This screen is cross-compatible with a broad range of part numbers from multiple vendors, including:
  • AUO Panels: B156HAN04.0, B156HAN04.1, B156HAN04.4
  • BOE Panels: NV156FHM-N41, N42, N46, N48, N31, N32
  • LG Panels: LP156WF6 (SP)(B1)–(M5), LP156WF4 (SP)(K1), LP156WFB (SP)(V1), etc.
  • Samsung Panels: LTN156HL06-C01, LTN156HL07–HL09
  • Other Compatible: N156HCE-EAA, EBA; MC156CS01‑1; LM156LF1L01–L11; LC156LF2L01

Compatible Laptop Models (partial list):

Acer:

  • Aspire 3 A315, Aspire 5 A515, Aspire 7 A715
  • Aspire E15, F15, Nitro 5 (AN515 series), Predator Helios 300
  • TravelMate TMP, P2, P4, TMP658, V Nitro, VX 15

Asus:

  • FX502/503/553/570 series, TUF FX504
  • ROG GL503/GL552/GL553/GL702/Strix GL502
  • Vivobook X570, M570, Pro X580, K501
  • X550/X540, N550 series

Dell:

  • Inspiron 3000-5000-7000 series: 3558, 5570, 5583, 7567, 7577, etc.
  • Latitude 3500-5591, Precision 3510/7520/7530, Vostro 3568–7590

HP:

  • Pavilion 15, Gaming 15, ProBook 450/455/650/655
  • Omen 15, Envy 15, 15-DA/DB/BS/BW series, 250/255 G6/G7

Lenovo:

  • IdeaPad 130/310/320/330/500/510/700
  • V110/V130/V310/V330, ThinkPad E570/E575/L570/P50, Legion Y520/Y720

MSI:

  • GL62, GL63, GP62, GE62, PE60, PX60, GS60 Ghost series, Prestige, Workstation WT/WS

This screen is available for local pickup at Fixlaptop in Tbilisi, or shipping across Georgia.

200

SKU: s70065 Categories: , ,

Additional information

Screen Size

Connector

Form Factor

Resolution

Screen Backlight

Warranty

Panel Type

Surface

Condition

• Warranty on all screens – 60 days
• Free shipping across Georgia for orders over 250 GEL
• Free consultation with an engineer and assistance in selecting laptop parts
• Screen testing before purchase

At our store in Tbilisi, you can buy a screen for any modern or outdated laptop. We also offer upgrades for office and gaming laptops, allowing you to install a more professional screen with improved characteristics tailored to your needs. Our store has its own service center with over 15 years of experience. We can source rare screens or complete touch display assemblies with lids upon request for any laptop and deliver them to Georgia within 7-15 days.
